M01 220431-V1.2

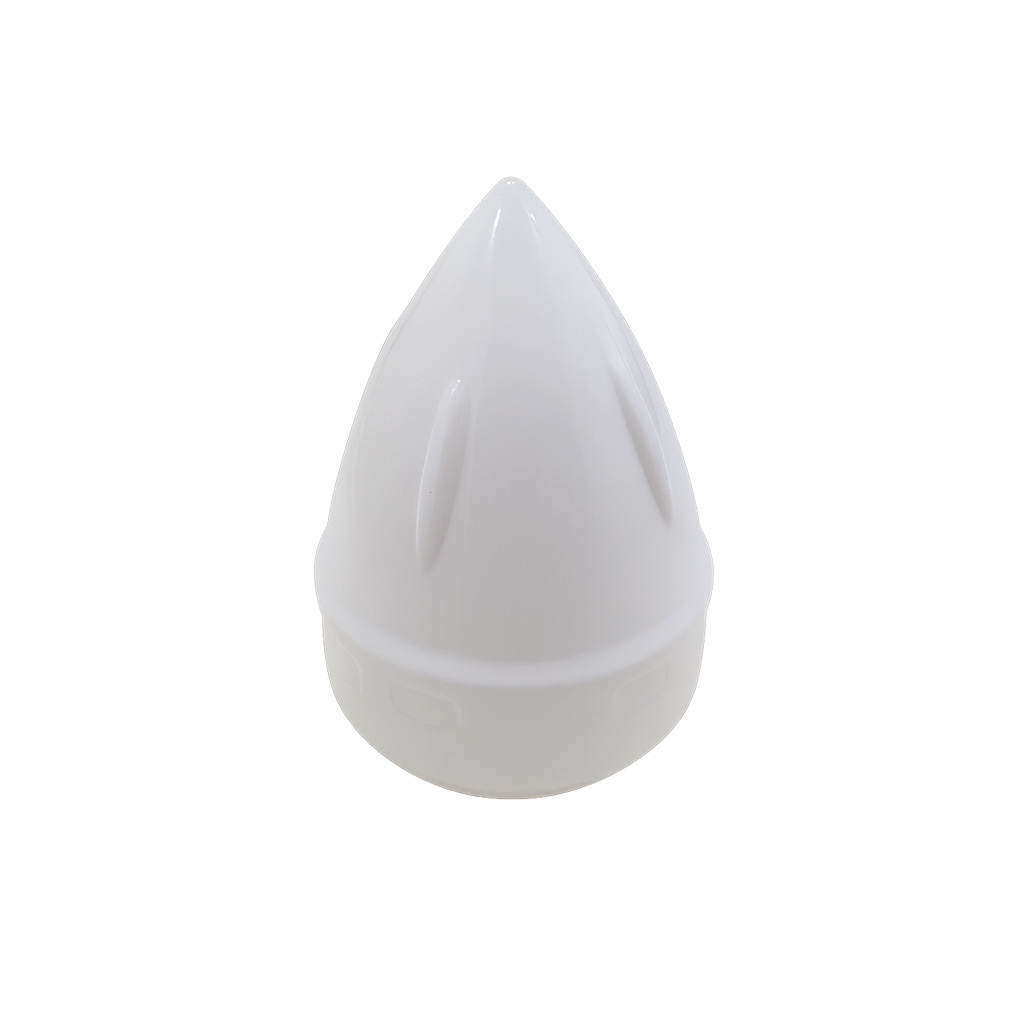

GPS Antenna
Frequency Range (3 dB Bandwidth): GPS L1 band, 1575.45 MHz ± 10 MHz
Polarization: Right-hand circular (RHCP)
Impedance: 50 Ω (typical)
Connector Type: N-type female connector
Total Gain: 38 dB (typical), 30 dB minimum at 90° elevation
Attenuation: 60 dB (typical) at 1575.42 ± 50 MHz
Noise Figure: 1.8 dB (typical), 2.2 dB maximum
VSWR: 1.5 (typical), 2.5 maximum
Power Supply: DC 5 V ± 0.5 V, <27 mA (20 mA typical)
