T464525041401

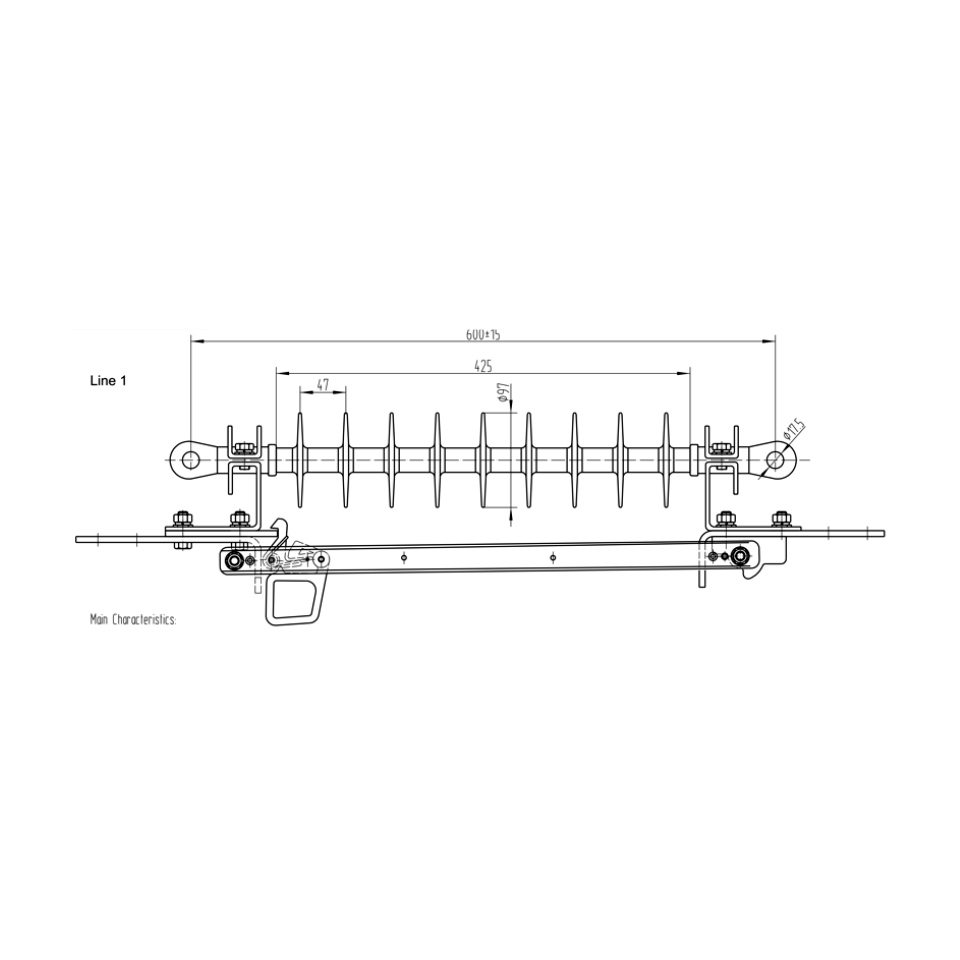

Application: Line disconnect switch for overhead power distribution, operated by insulating stick (hookstick)
Installation Type: In-line, for overhead network use
Operating Temperature Range: -40 °C to +65 °C
Conductor Compatibility (ACSR): 18/1, 397.5 (18/1, 24/7, 26/7, 30/7)
Conductor Compatibility (AAC): 450, 477, 500
Nominal Voltage Class: ≥ 46 kV
Rated Current: ≥ 900 A
Frequency: 60 Hz
Standards Compliance: IEEE and ANSI (latest revision) for high-voltage air disconnect switches
Applicable Standards: ANSI/IEEE C37.30.1, ANSI C119.4, C37.32, C37.34, IEEE C37.30
Mechanical Strength: ≥ 4,500 kg (10,000 lbs)
Basic Impulse Level (BIL): ≥ 250 kV
Warranty: 1 year
