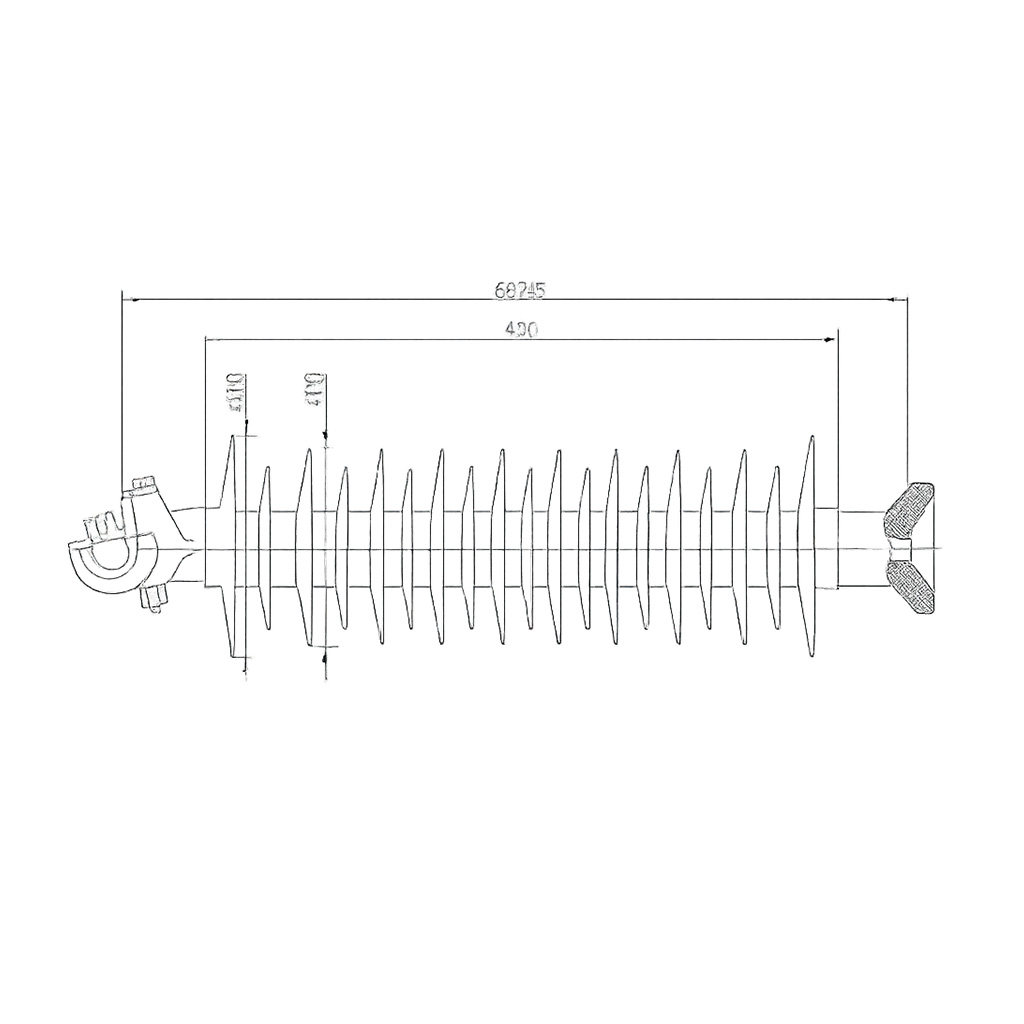

TS41125040101

Application: Horizontal line post insulator for 44 kV lines (418, 405 & 406)
System Voltage (max): 69 kV
Section Length: 667 mm
Leakage Distance: 1478 mm
Mechanical Strength: Maximum design tension 2,470 lbs (11.0 kN)
Flashover Rating: 360 kV – Critical Impulse Flashover (CIFO), positive polarity
Fittings / Base: Universal clamp / stud base, 3/4″-10 tap; fitting ground / base included
Rod Diameter: 3/4 in
Industry Standards: ANSI Class insulator
